Fabricator models quartz heat lamp assemblies - HUQ

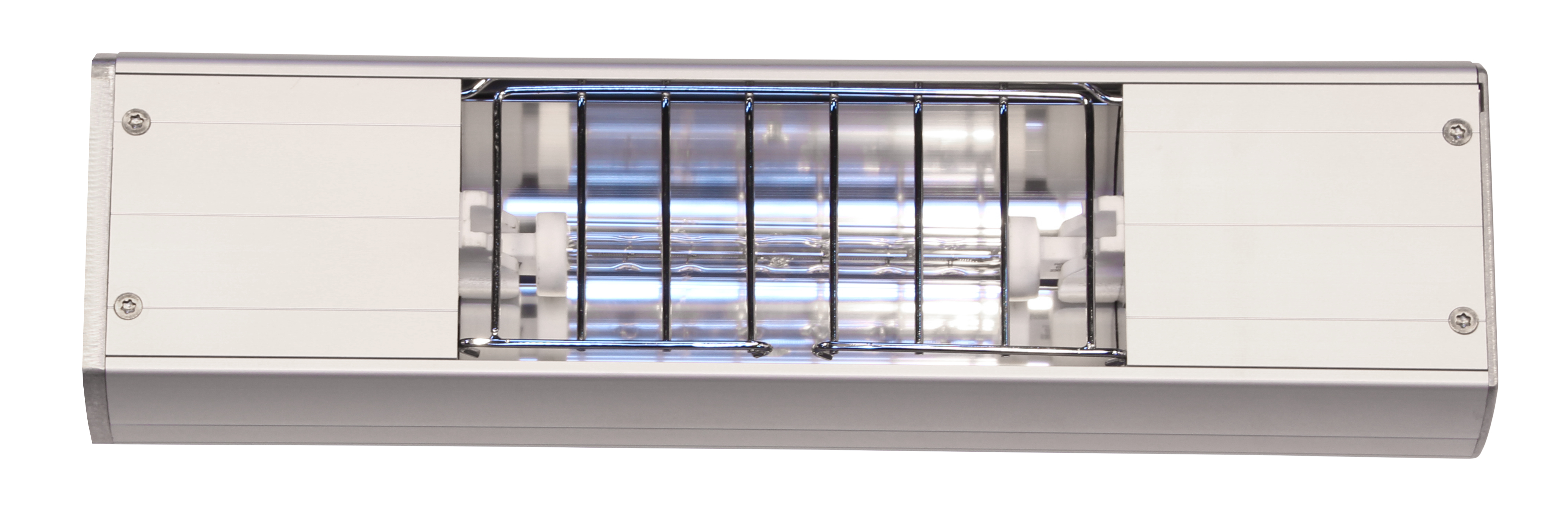

HUQ375E
with 1500mm flying leads for installation and remote switch
Dimensions WxDxH (approx. mm)
Outer 375 x 108 x 65
1 Lamp
Power 350 W
Connected wattage 220-240 V, 50-60 Hz, 16 A

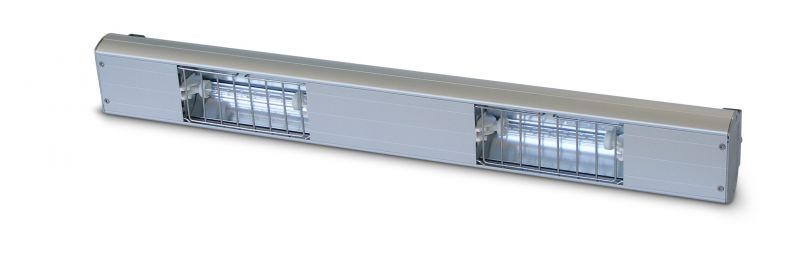

HUQ825E
with 1500mm flying leads for installation and remote switch
Dimensions WxDxH (approx. mm)
Outer 825 x 108 x 65
2 Lamps
Power 700 W
Connected wattage 220-240 V, 50-60 Hz, 16 A
HUQ1125E
with 1500mm flying leads for installation and remote switch
Dimensions WxDxH (approx. mm)
Outer 1125 x 108 x 65
3 Lamps
Power 1050 W
Connected wattage 220-240 V, 50-60 Hz, 16 A
HUQ1425E
with 1500mm flying leads for installation and remote switch
Dimensions WxDxH (approx. mm)
Outer 1425 x 108 x 65
4 Lamps
Power 1400 W
Connected wattage 220-240 V, 50-60 Hz, 16 A

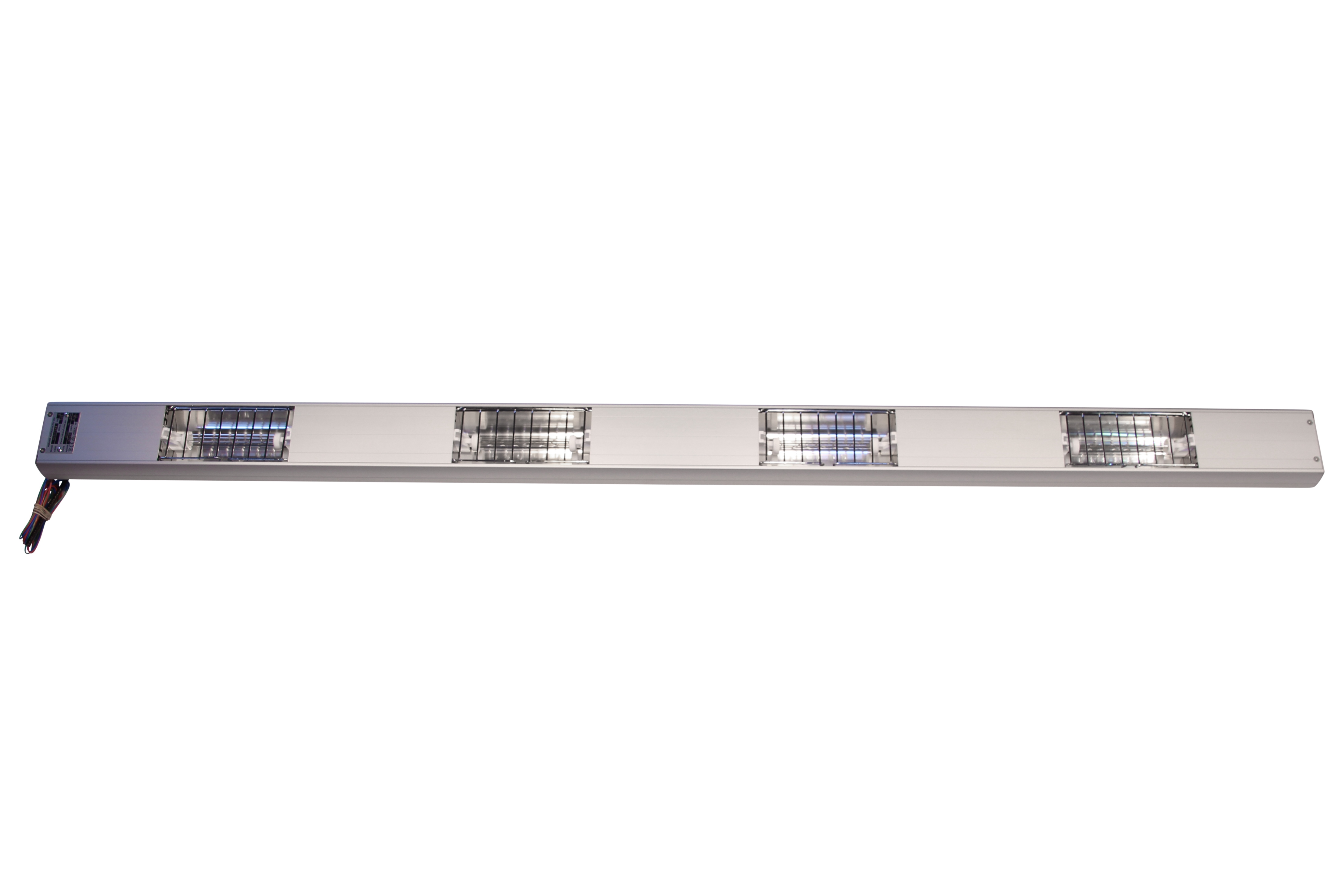

HUQ1725E
with 1500mm flying leads for installation and remote switch
Dimensions WxDxH (approx. mm)
Outer 1725 x 108 x 65
4 Lamps
Power 1400 W
Connected wattage 220-240 V, 50-60 Hz, 16 A
HUQ2025E
with 1500mm flying leads for installation and remote switch
Dimensions WxDxH (approx. mm)
Outer 2025 x 108 x 65
5 Lamps
Power 1750 W
Connected wattage 220-240 V, 50-60 Hz, 16 A
Dimensions
