i.ScoopShower

Function and customer benefits

Many of the usual scoop rinsers used leave much to desire with respect to the hygiene requirements – especially in summer, impureness finds rich feading grounds here. Dirty rinsing water passes from the scoop to the ice cream. On the other hand pure through-flow systems have high water consumption and so involve high costs.

i.ScoopShower – our spray rinsing devices for ice-cream scoops are the perfect solution:

Function

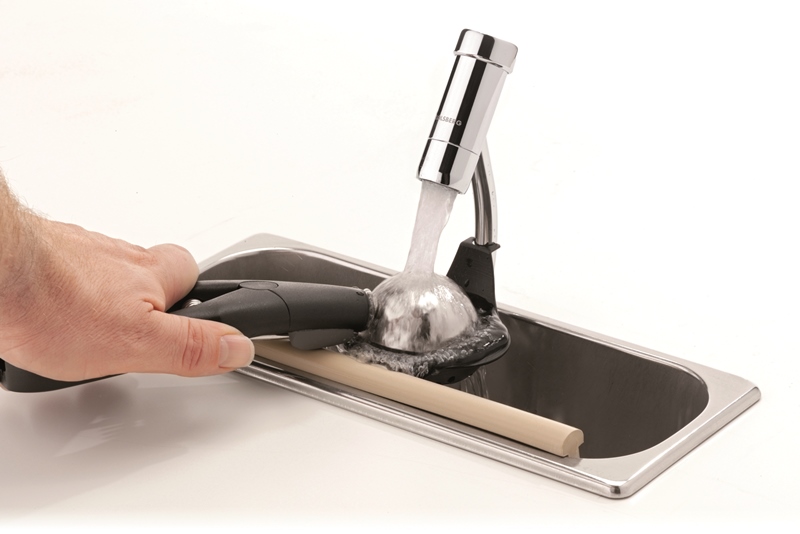

The water valves at the top and bottom are opened by pressing the disher on the spherical head. The disher is always rinsed with fresh water from above and below. Dirty washing water runs away immediately. The water on the inside of the scoop is swirled around. This rinses off the food residuals.

On removing the scoop from the spherical head the water valves are automatically closed again by the water pressure.

Less water consumption – greater economic efficiency

Use of an automatic shut-off valve enables in average more than 50% water savings to be achieved compared to systems with continuous water flow.

More hygiene – improved quality

The disher or ice-cream scoop is always rinsed with fresh water from above and from below. Dirty washing water runs away immediately.

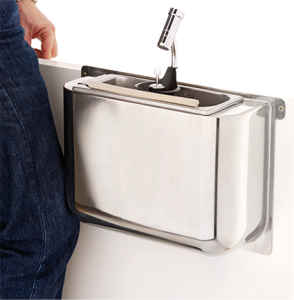

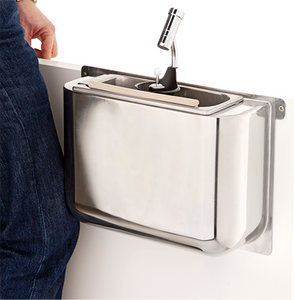

Elegant design – more comfort

Our product lines i.ScoopShower Exclusive and Exclusive Plus come with a holder for wall attachment with rounded corners. The elegant design contributes to creating a pleasant atmosphere in the shop and increases comfort in the working environment.

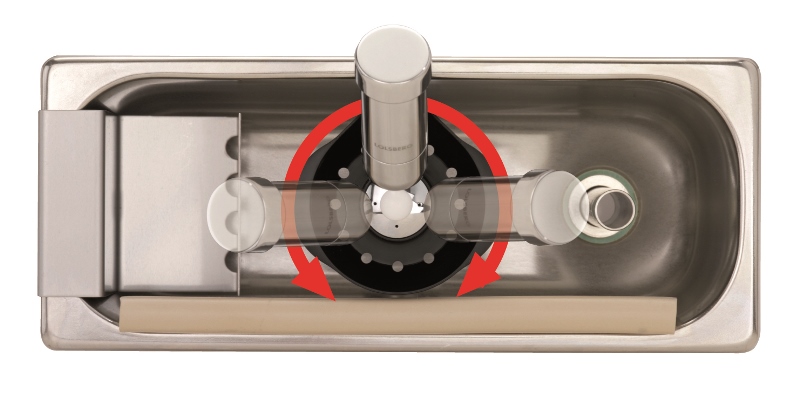

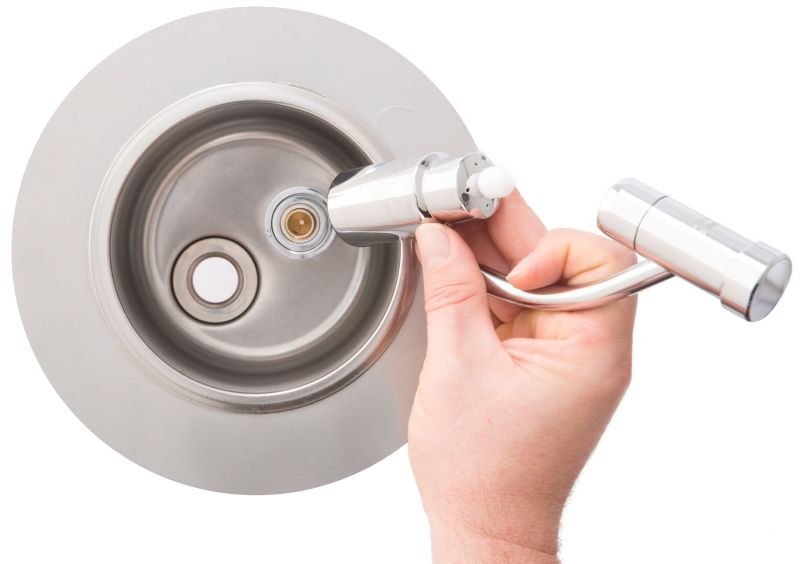

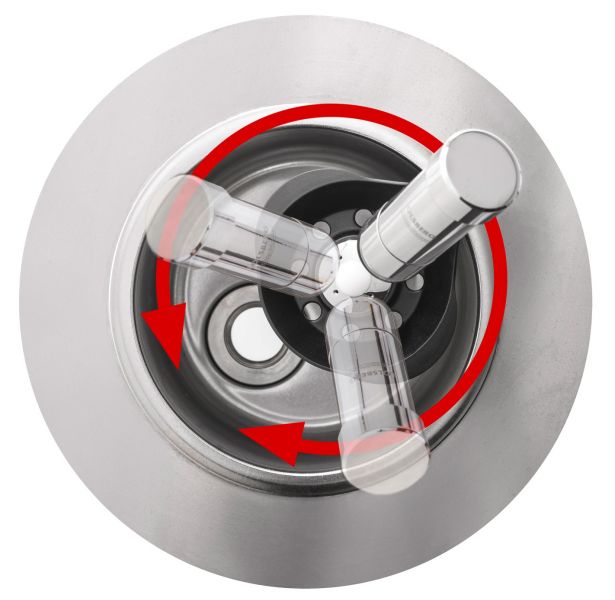

Flexible mounting position – 360°!

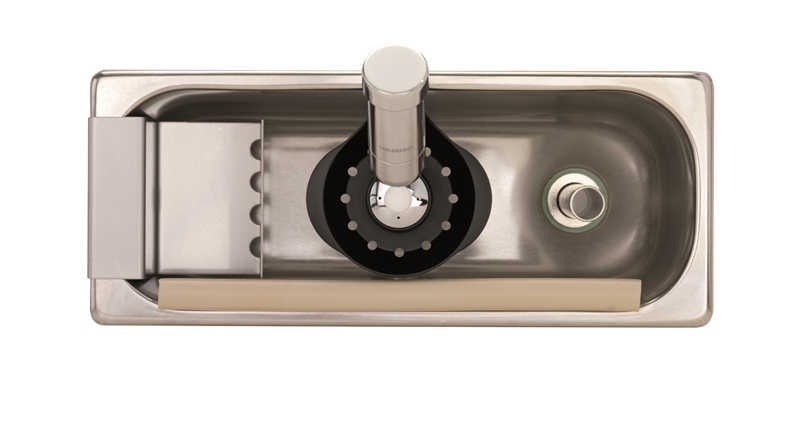

Straining disc (removable)

The straining disc serves to collect e.g. pieces of chocolate, nuts, fruits in order to avoid the water outlet from being blocked. Furthermore it additionally bubbles up the water which increases the rinsing effect.

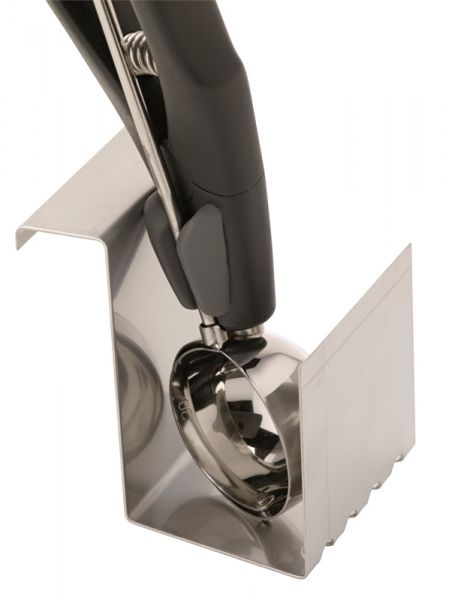

Scoop drain insert (removable)

The scoop drain insert can be easily clipped into our rinsing containers and serves as a clean drip drain deposit for rinsed scoops while keeping sufficient distance from the bottom of the rinsing container.

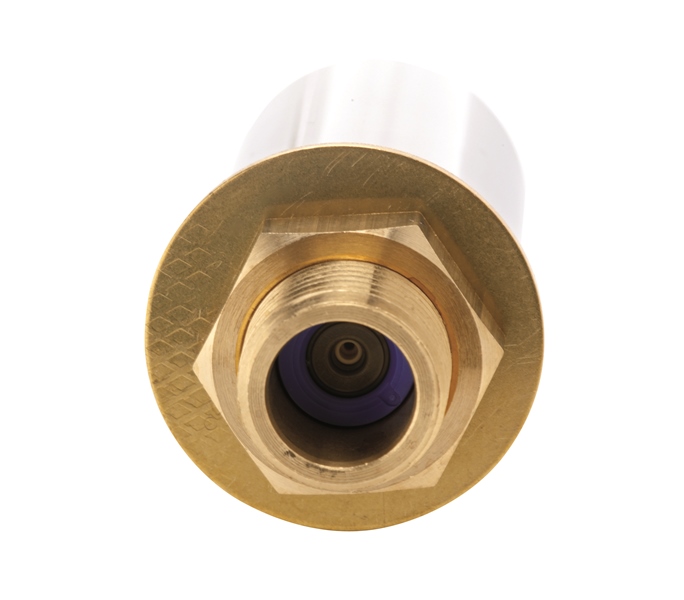

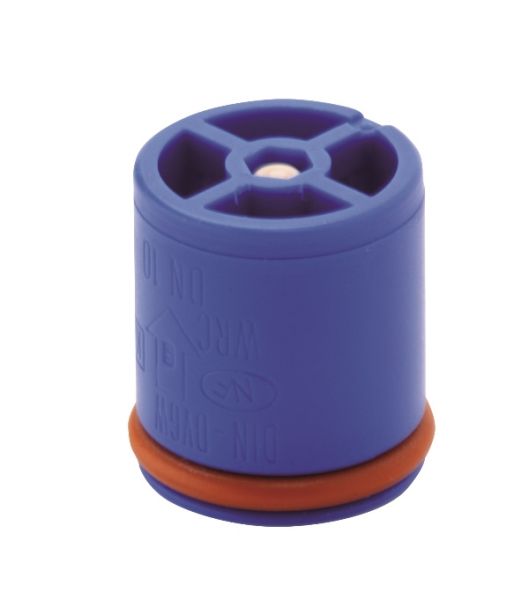

Integrated water-backflow-preventer

Below the automatic waterstop there is a water-backflowpreventer. This means an additional protection.

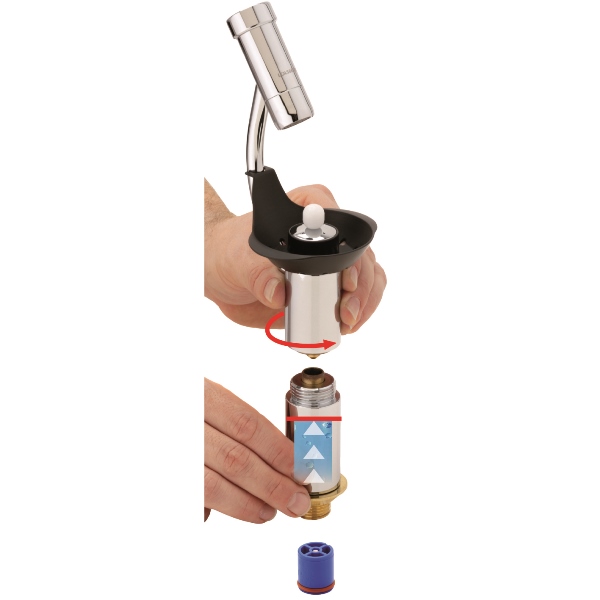

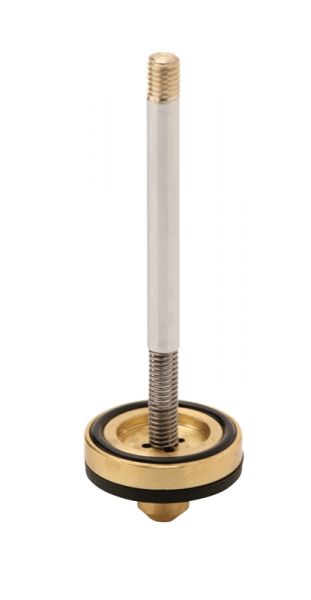

Compact one-piece valve assembly for comfortable and easy cleaning

The compact one-piece valve assembly enables a comfortable and easy cleaning of the spray rinsing unit even from inside without requiring to disassemble the complete unit. Also here we paid attention to the details: The gaskets are clipst onto the valve plate and won’t get lost easily!

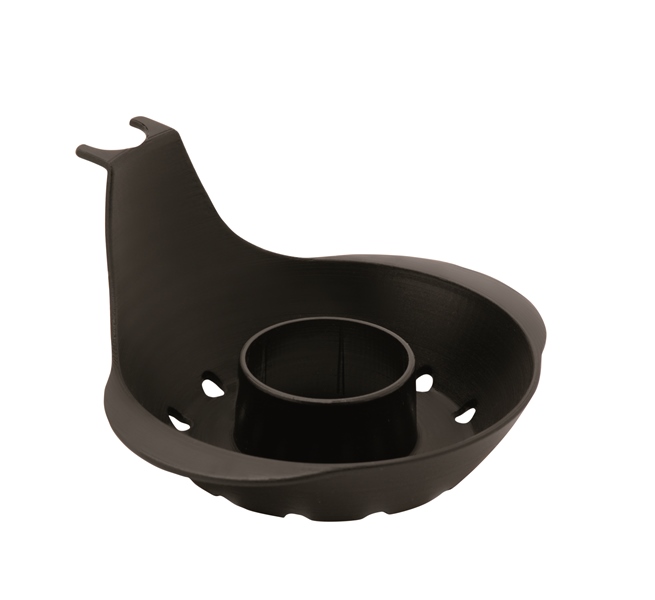

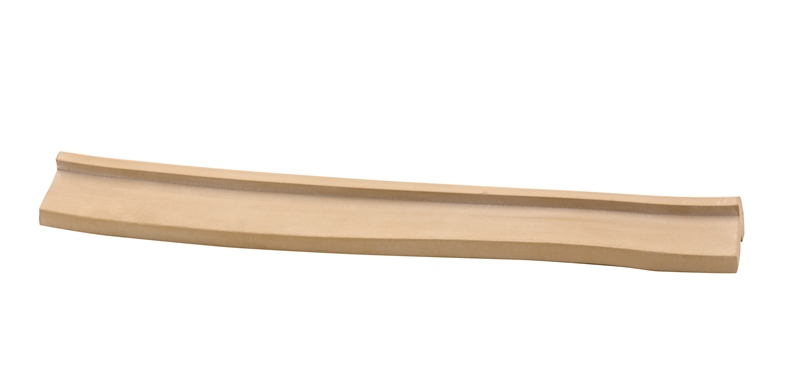

Tap-off section – removable

After rinsing the scoop the tap-off section made of rubber-like material helps to remove the remaining drops of water. Tapping off the water ensures that it doesn’t get into the ice cream. This prevents the formation of ice crystals which change the taste. The unhygienic sponge is no longer required.

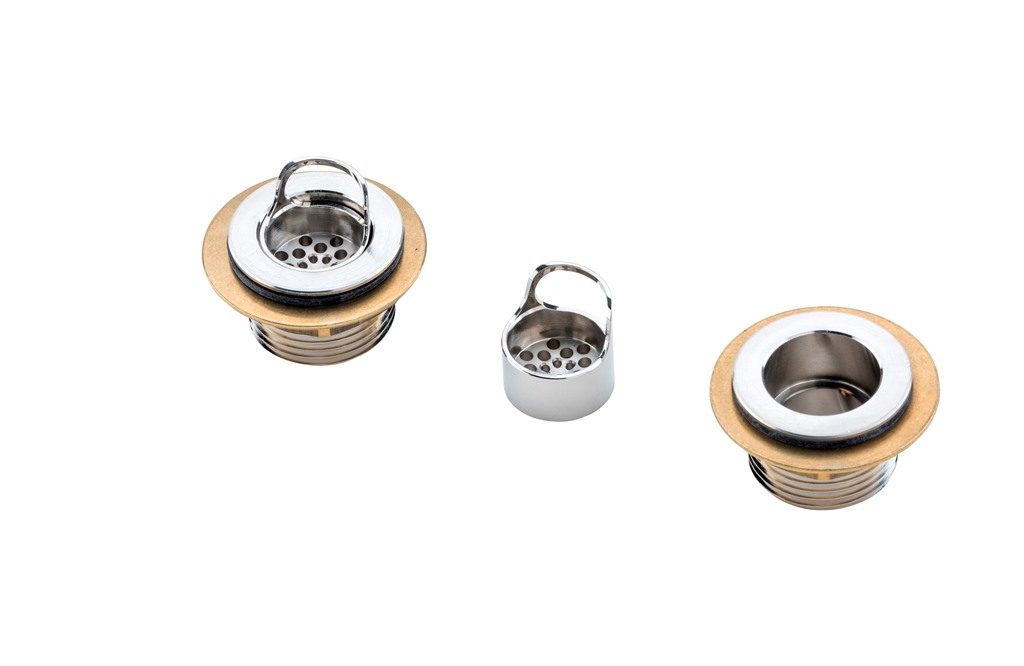

Strainer insert for water drain connection

The strainer insert serves to collect e.g. pieces of chocolate, nuts, fruits in order to avoid the water outlet from being blocked.


Scoop drain insert

Scoop drain inserts to be used e.g. with:

  • Spray rinsing devices for dishers and ice-cream scoops i.ScoopShower Silver 920 024 / 921 024
  • Spray rinsing devices for dishers and ice-cream scoops i.ScoopShower Silver WATERSTOP 925 024 / 926 024
  • Spray rinsing devices for dishers and ice-cream scoops i.ScoopShower Silver WATERSTOP XL 925 124
  • Scoop drain container round 920 967 / 920 986 / 920 989 / 920 998
  • Rinsing container 920 987 / 920 988 / 920 991

Flexibility

Various models for all stationary and mobile requirements.

This system of course also unfolds its benefits for all proprietary types of ice-cream scoops.

Reliability

i.ScoopShower is manufactured from high-quality precision parts and has been sold to thousands of satisfied customers.

Installation / water connection

Fits in every work counter / cabinet (standard sizes).

Easy connection to water supply mains.

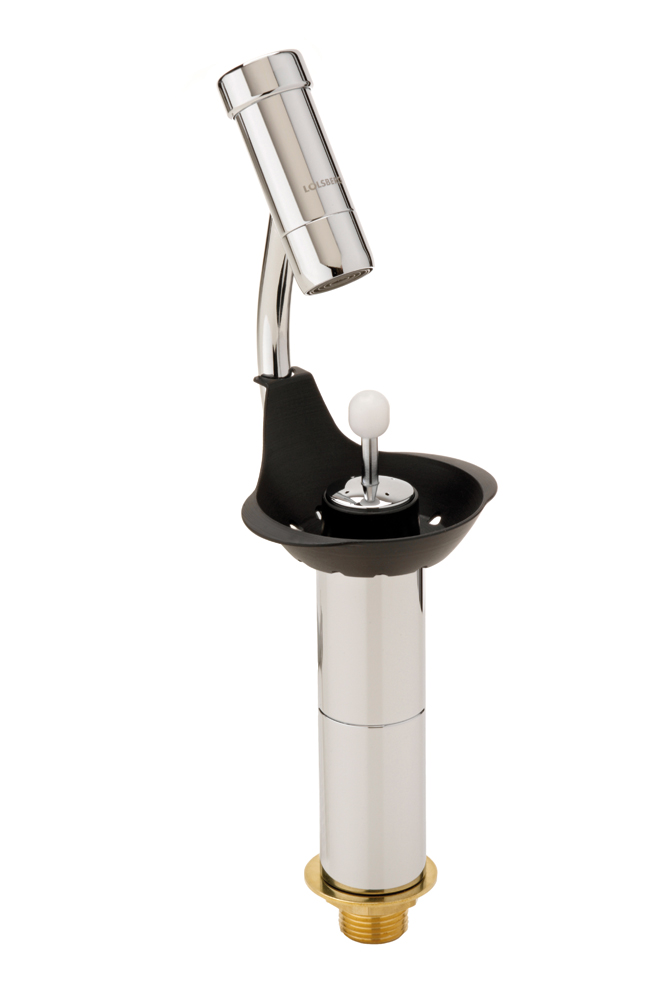

i.ScoopShower Silver WATERSTOP & i.ScoopShower Silver WATERSTOP XL

The i.ScoopShower Silver Waterstop and i.ScoopShower Silver Waterstop XL with integrated water-jet adjustment at upper shower head and automatic waterstop

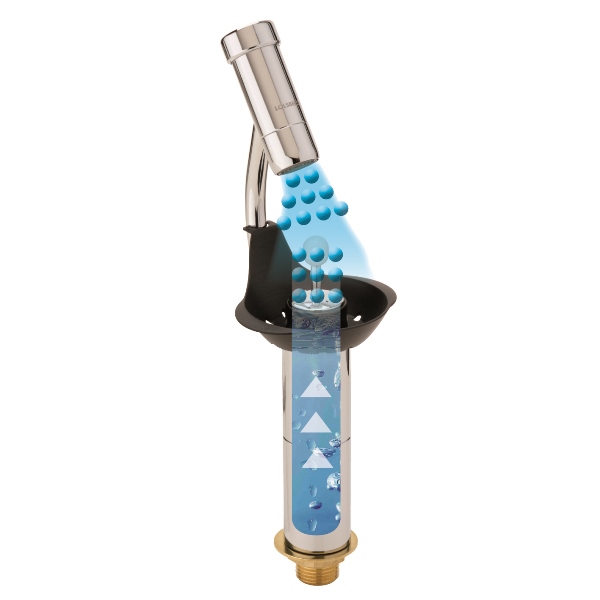

High waterflow from above and below - water-jet adjustment at upper shower head completely opened.

Integrated water-jet adjustment at upper shower head

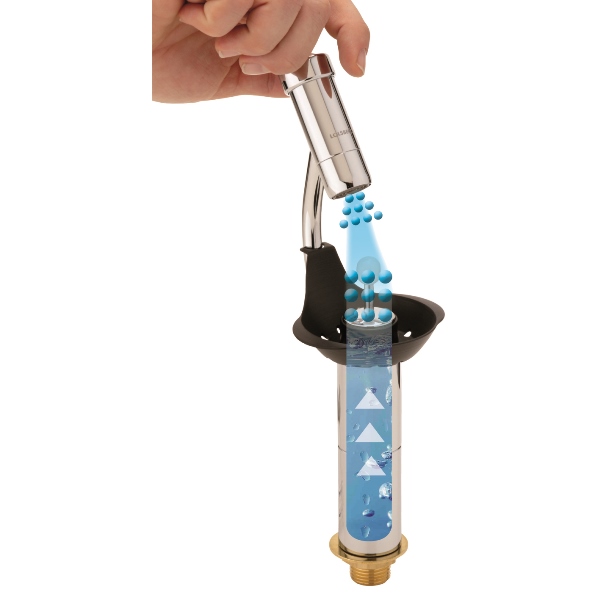

Low waterflow from above possible.

On one hand the water jet from below shall be as strong as possible in order to ensure a maximum rinsing result with regard to the messy inner bowl of the scoop. Therefore an adjustment respectively the reduction of the water jet from below is not necessary. On the other hand the water jet from above shall be adjustable in order to avoid water splashing around from the outer bowl of the scoop while still achieving a good rinsing result from outside. The water-jet adjustment on top of the upper shower head meets this requirement.

Integrated automatic waterstop

Inside the lower tube of the spray rinsing unit we built-in an automatic waterstop, which closes automatically when turning off the spray heads. This enables a comfortable and easy cleaning of the spray rinsing unit even from inside without requiring to disassemble the complete unit. Also here we paid attention to the details: The gaskets are clipst onto the valve plate and won’t get lost easily!


i.ScoopShower Silver &

i.ScoopShower Silver WATERSTOP

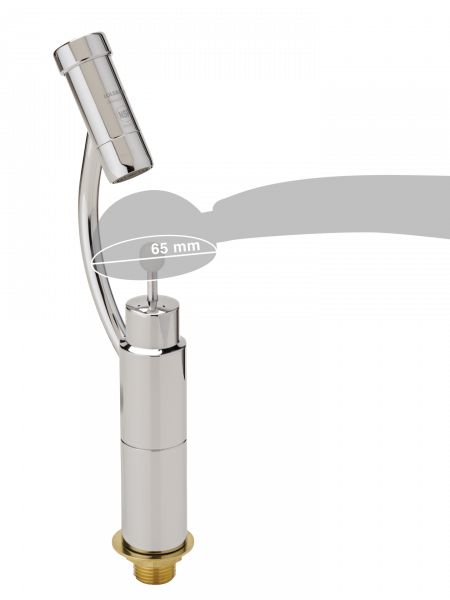

Suitable for all types and sizes of dishers and ice-cream scoops with diameters up to 65 mm

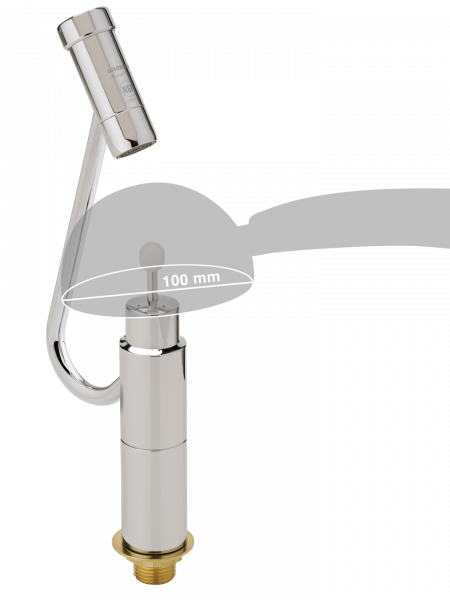

i.ScoopShower Silver WATERSTOP XL



Suitable for all types and sizes of dishers and ice-cream scoops with diameters up to 100 mm
